DOUBLE L LEGACY WINDROWER

THE SEASONED POTATO DIGGER WITH TRUE ROCK PROTECTION

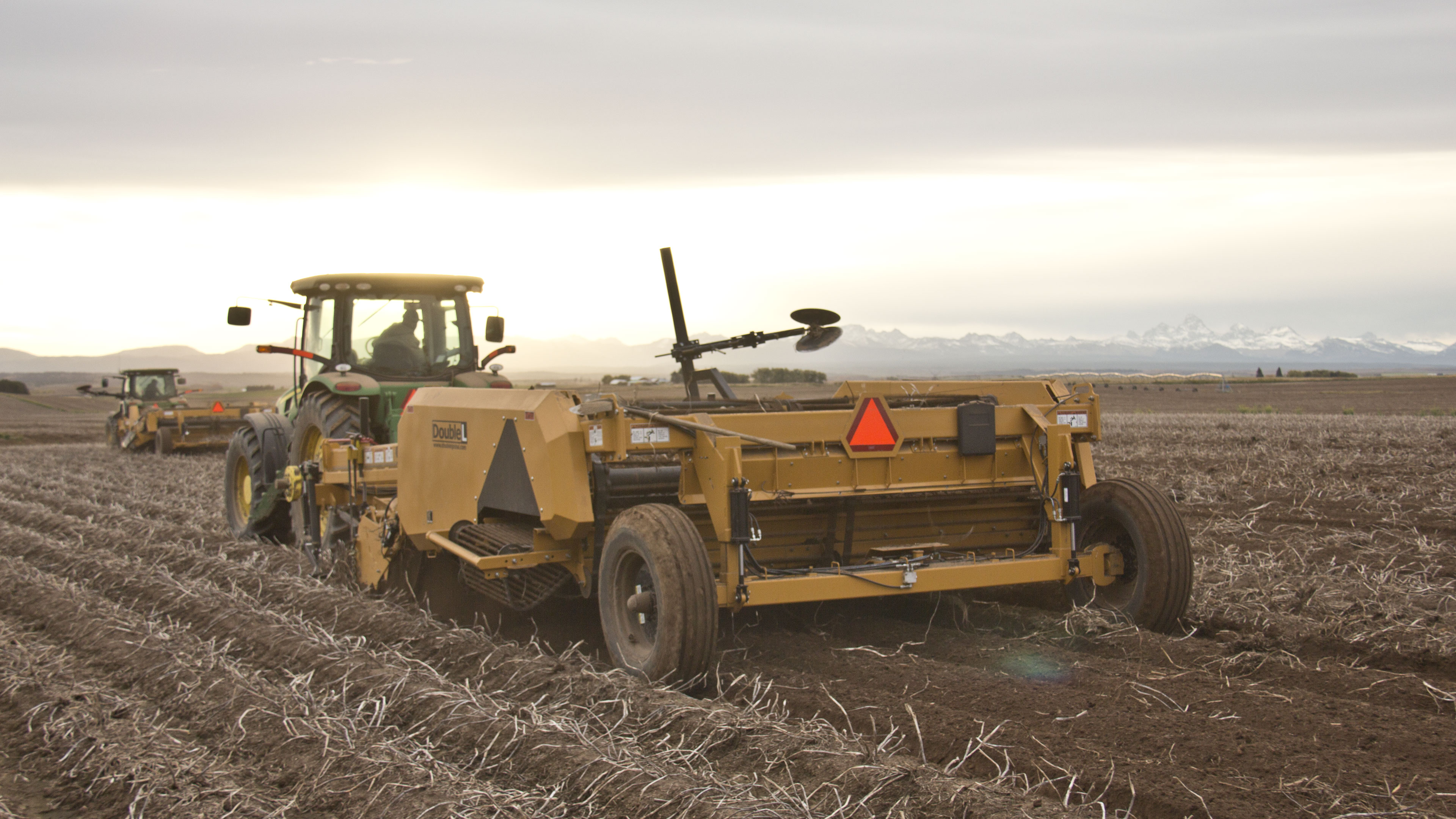

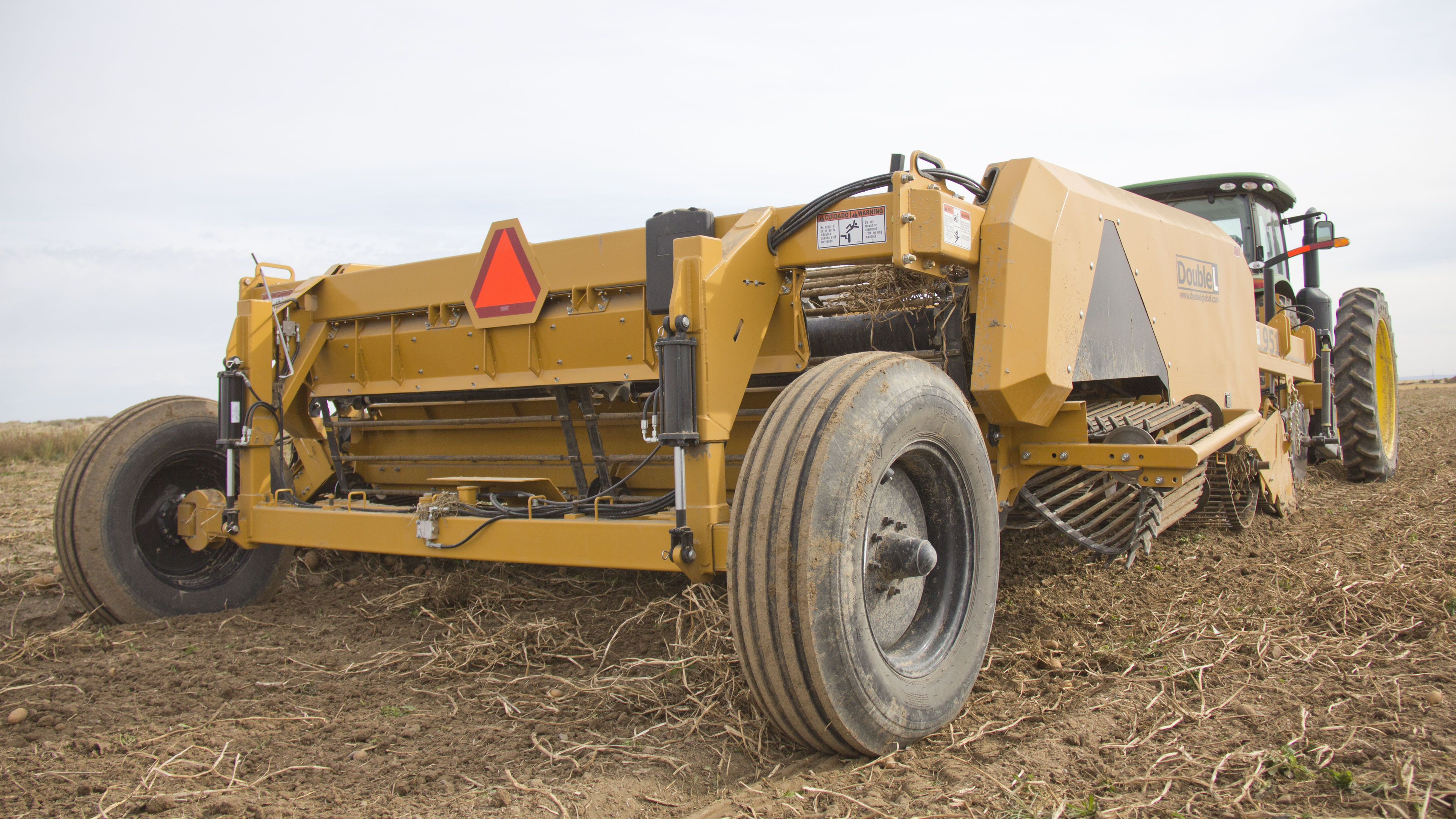

REAR HYDRAULIC LIFTING AXLE

Control the balance between aggressive cleaning, fast ground speed, and gentle product handling.

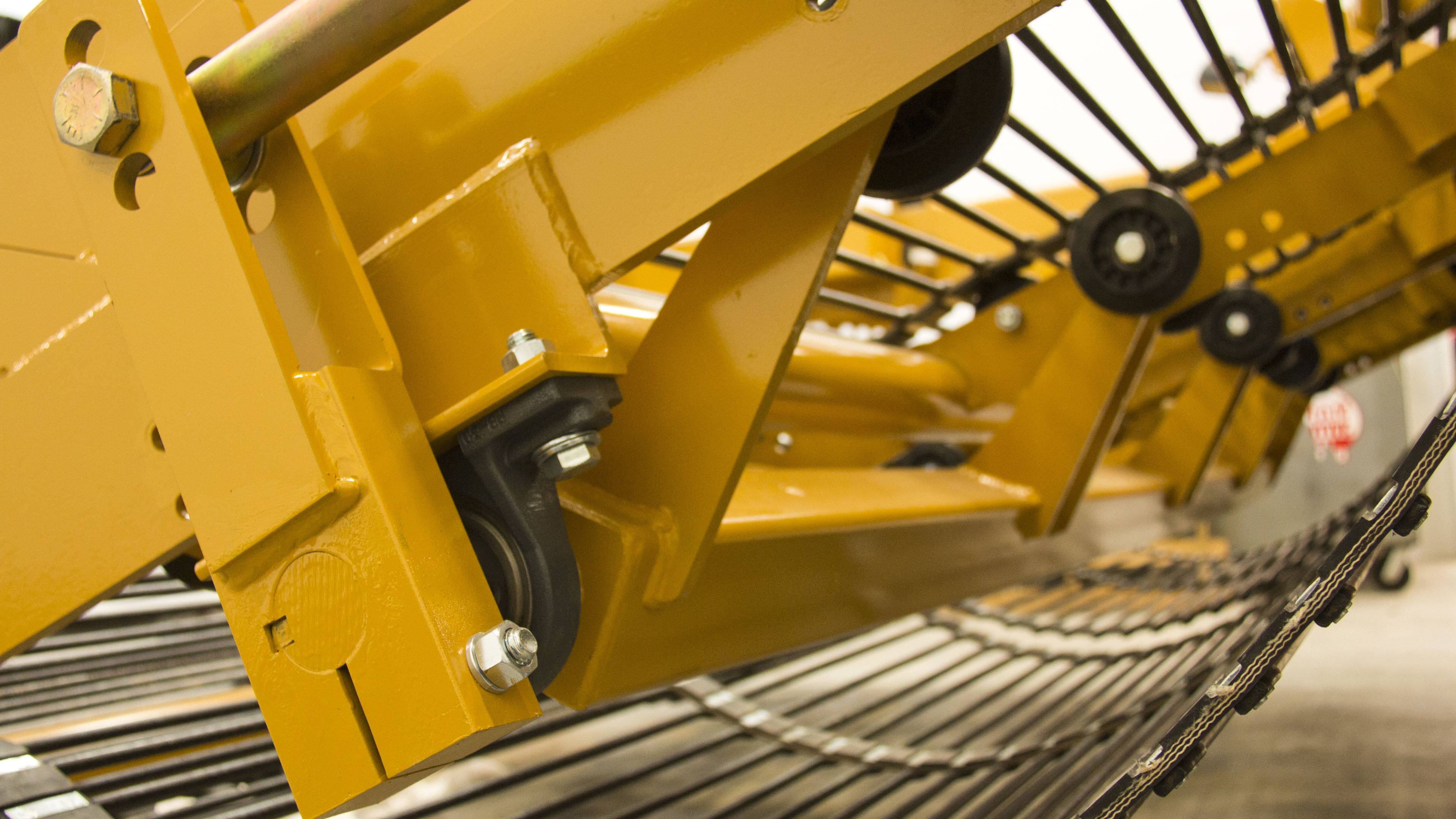

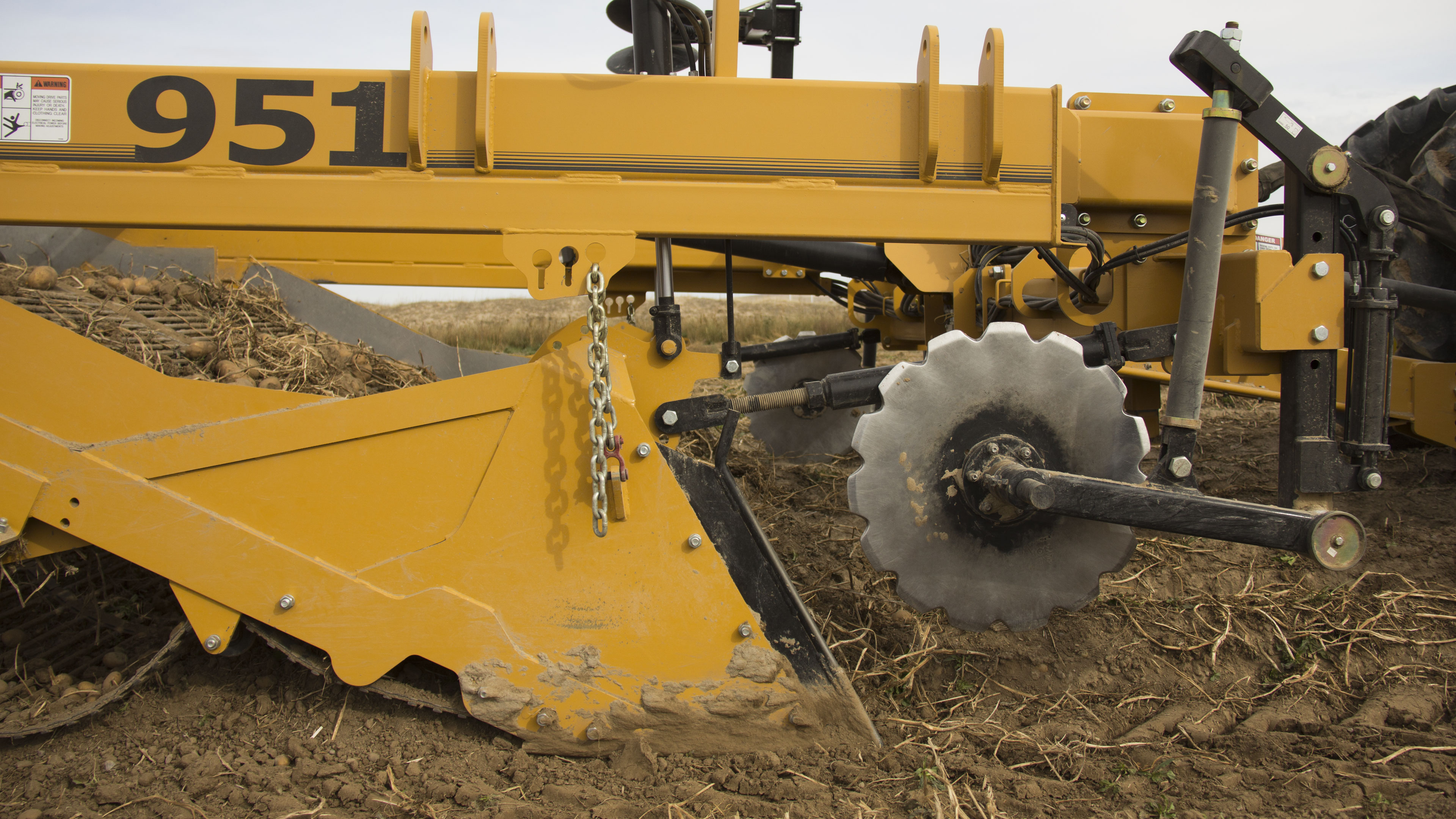

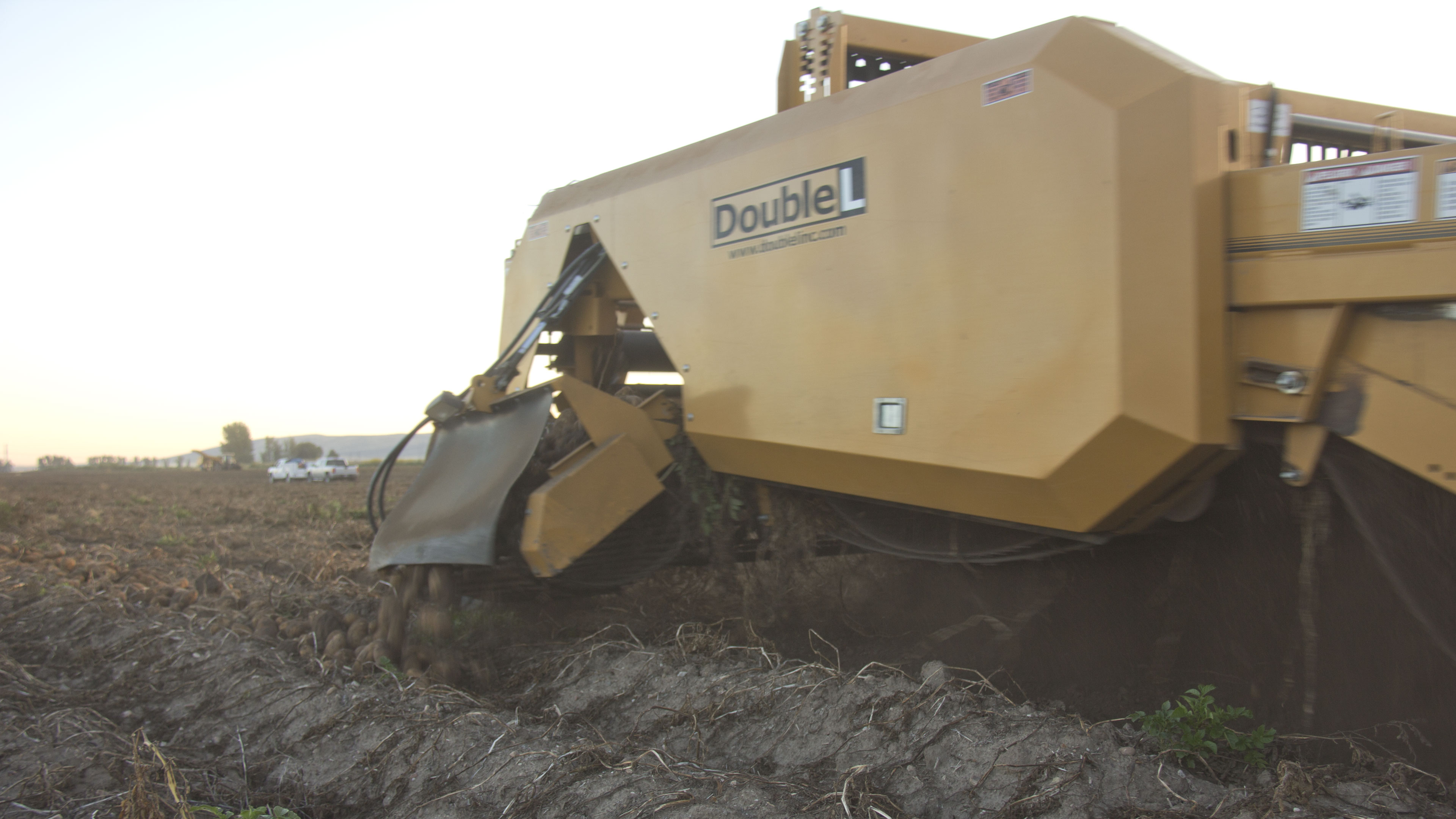

PULL-STYLE DIGGER BED

Bedrock formations near the soil's surface can play havoc with harvesting equipment unless it is equipped to handle such conditions. The Double L pull-style digger bed retracts as it comes in contact with an immovable rock formation. It automatically pulls itself over the rock and back into position without any control input from the operator.

2-, 3-, & 4-ROW OPTIONS

You recognize that there isn't always a one-size-fits-all machine for every farm. Double L offers multiple options to give you the most flexibility when choosing what's best for your farm.

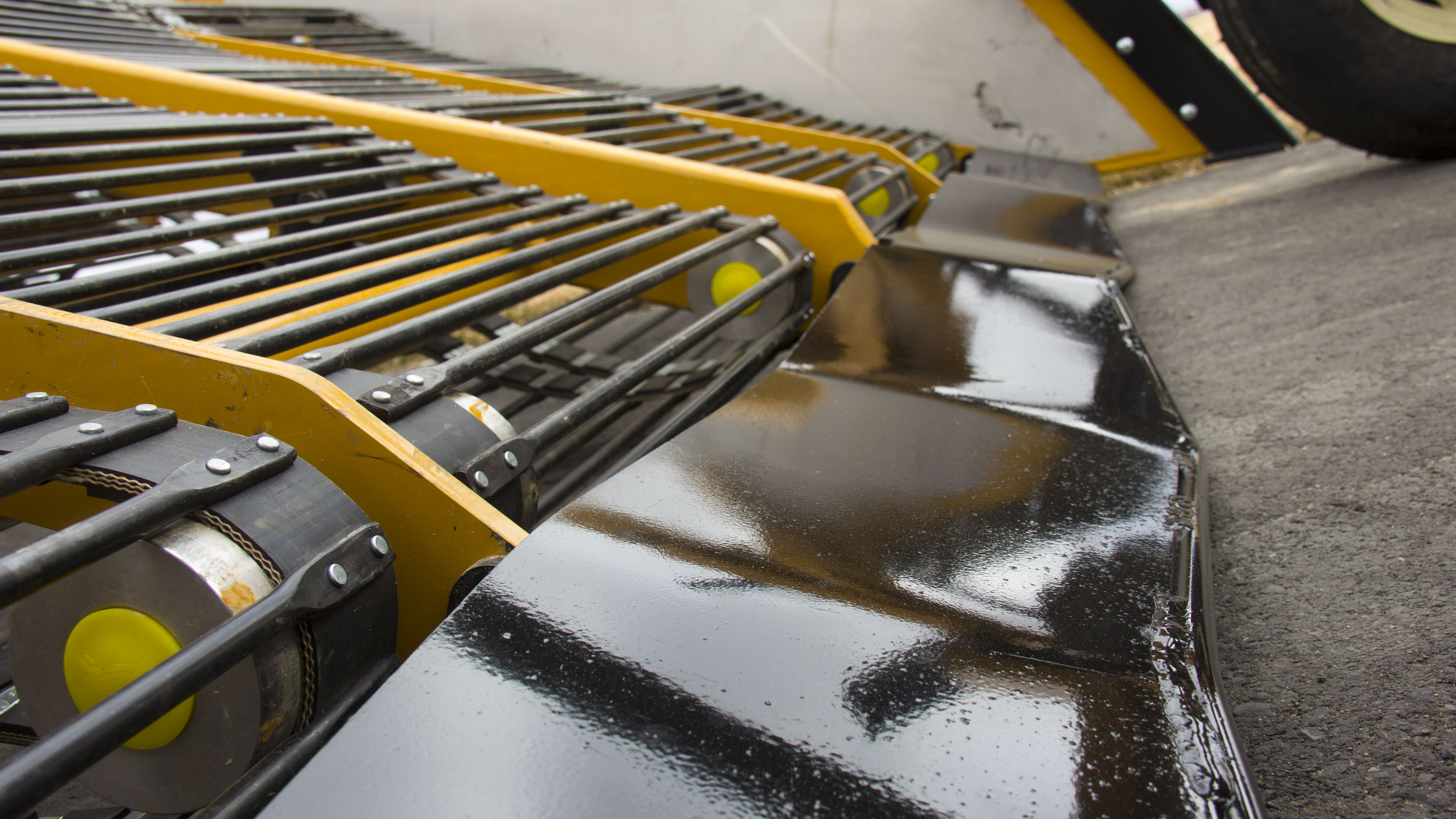

ELONGATED SECONDARY CHAINS

The secondary chains in Double L's legacy class windrowers are longer than those in competing models. The longer chains sift out more foreign material, leaving you with a cleaner product.

	852	951	981
Number of Rows	2	4	3
Height	6 ft. (1.83 m)	6 ft. (1.83 m)	6 ft. (1.83 m)
Width (transportation)	10 ft. 2 in. (3.10 m)	14 ft. 0 in. (4.27 m)	14 ft. 0 in. (4.27 m)
Weight	4.93 T (4.47 MT)	6.90 T (6.26 MT)	5.63 T (5.11 MT)
Horsepower Requirement	100 hp	180 hp	150 hp
Rear Cross Chain Width	36 in. (91.44 cm)	36 in. (91.44 cm)	36 in. (91.44 cm)
Devine Chain Width	69 in. (175.26 cm)	69 in. (175.26 cm)	69 in. (175.26 cm)
Track Width	70 in. - 72 in. (177.80 cm - 182.88 cm)	130 in. - 144 in. (330.20 cm - 365.76 cm)	103 in. - 108 in. (261.62 cm - 274.32 cm)
Tires	11.25 x 24 12-ply	11.25 x 24 12-ply	11.25 x 24 12-ply
