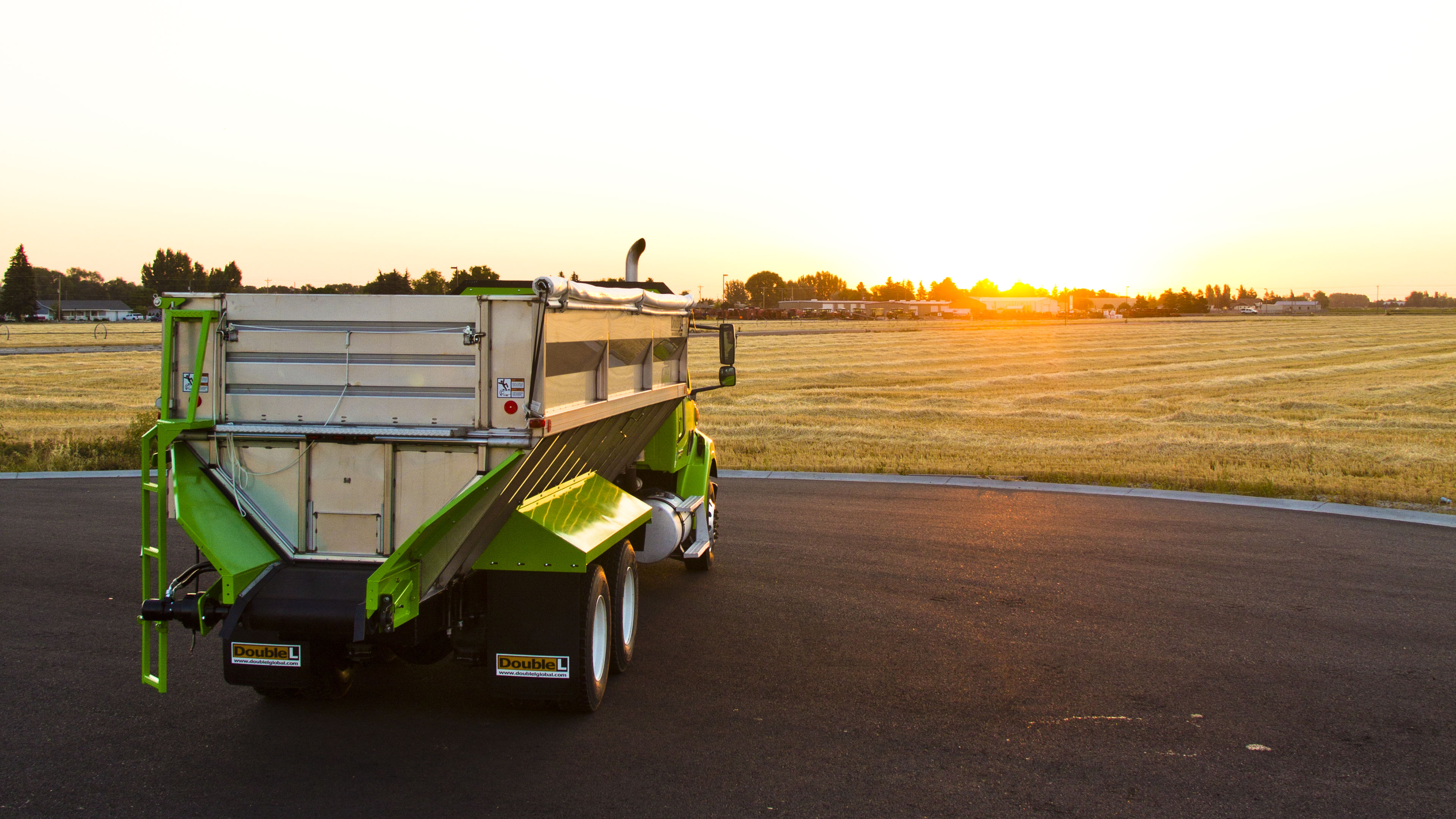

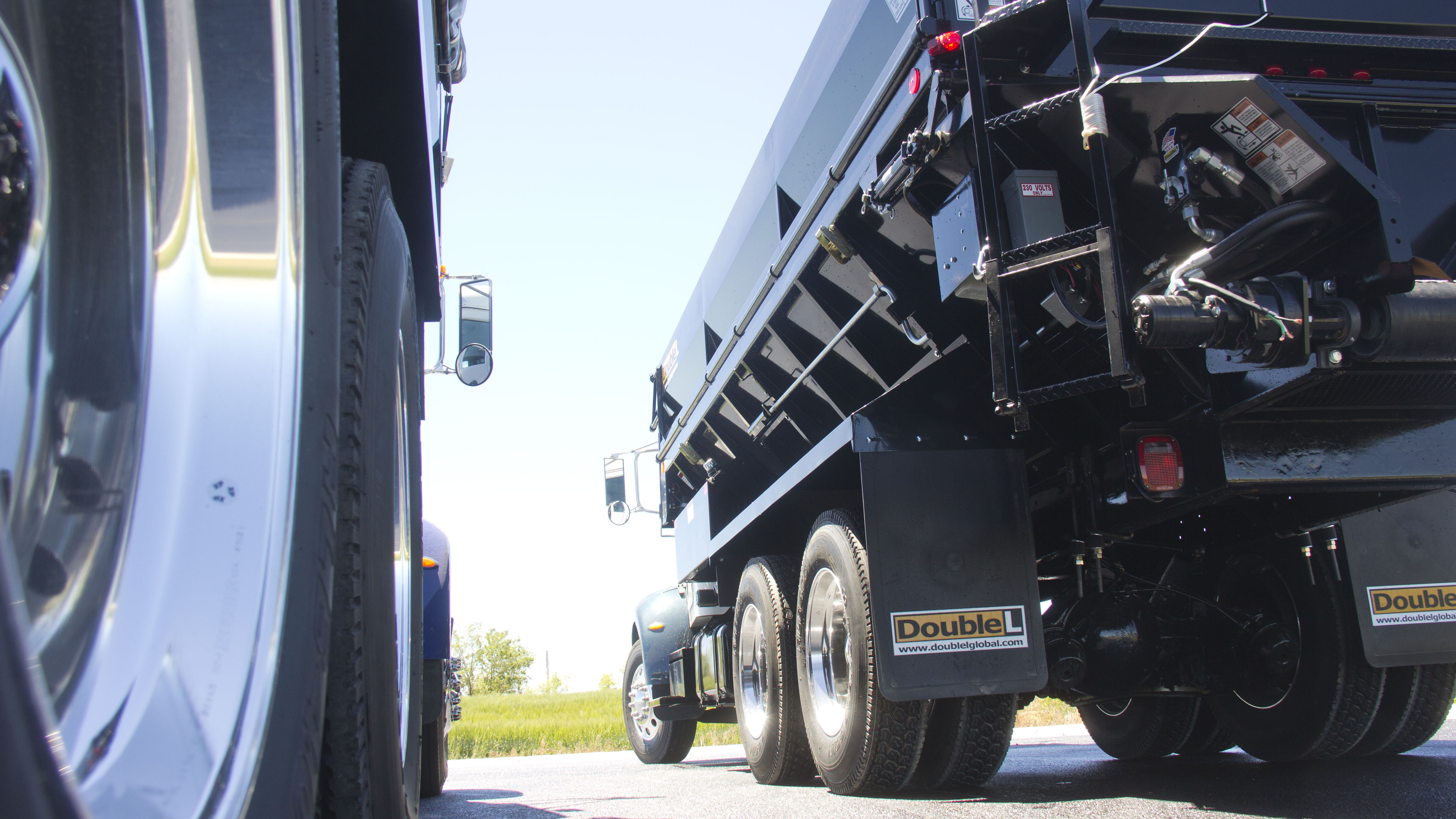

DOUBLE L TRUCK BED

THE FAST AND VERSATILE SELF-UNLOADING TRUCK BED

FEATURES / PHOTOS / TECH SPECS / VIDEO

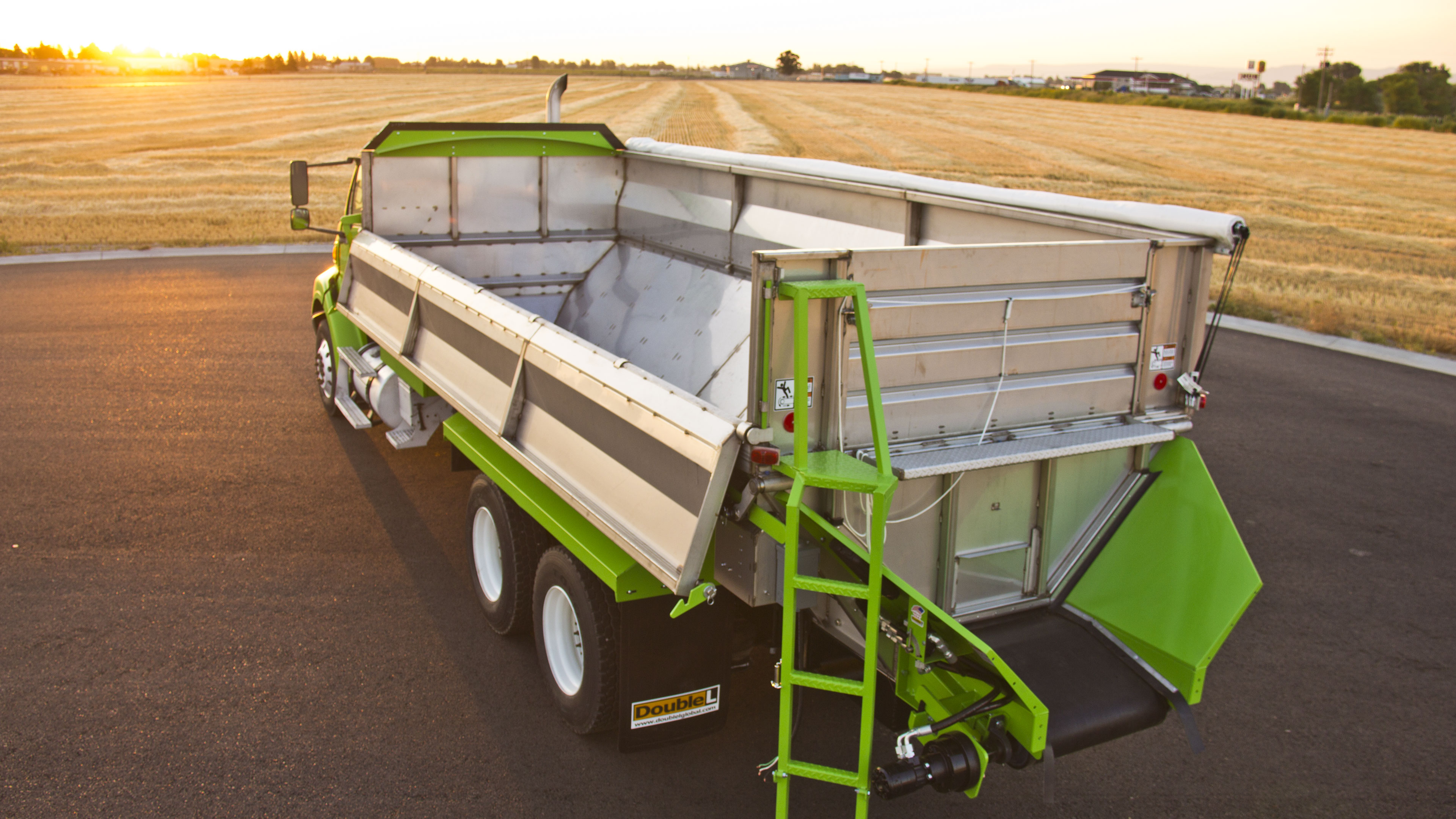

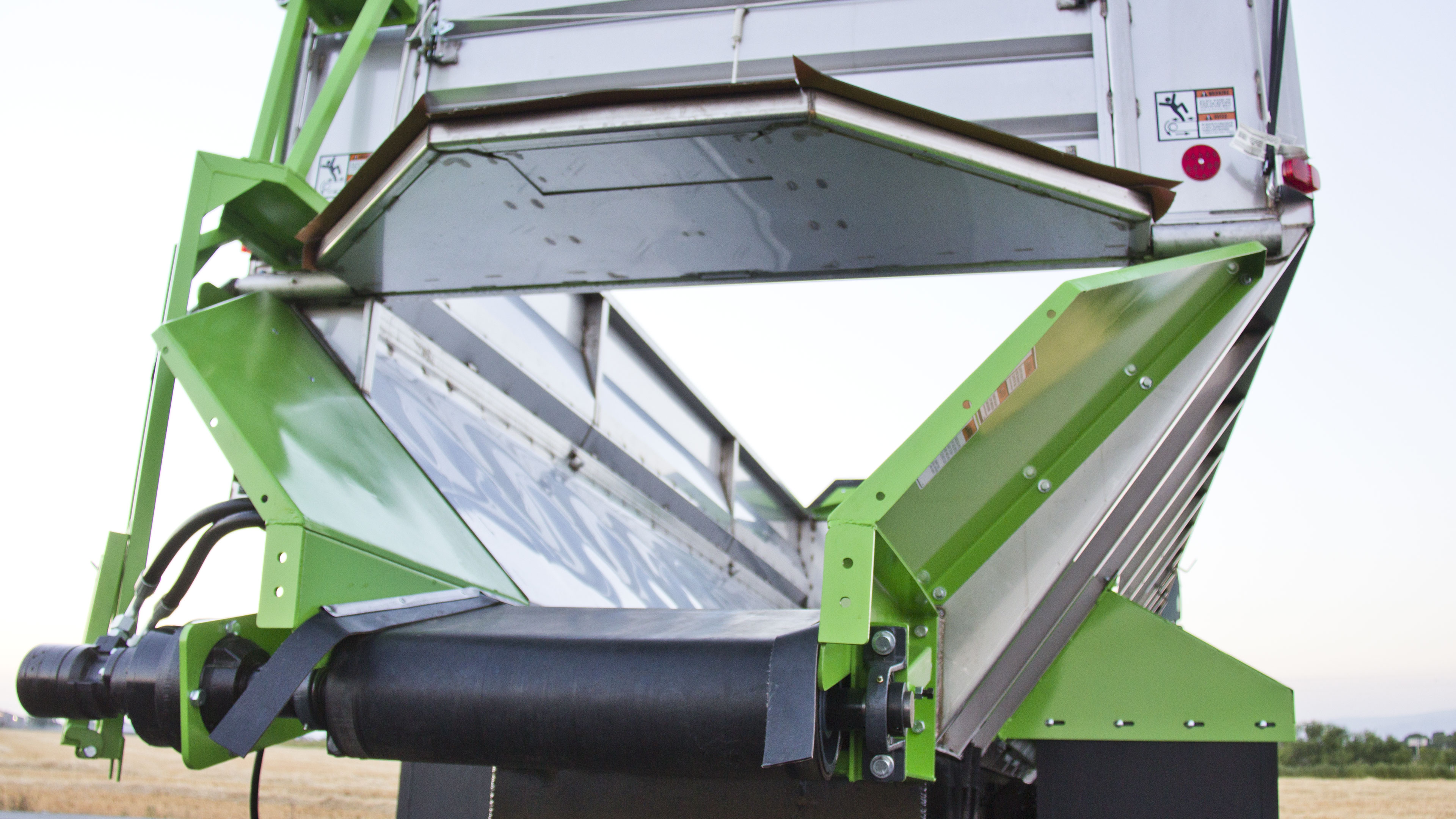

DOG-LEG DISCHARGE

One of the hardest drops your product will take is from the discharge of a truck bed to the stinger or hopper bowl of your even flow tub or collector. The dog-leg discharge reduces the distance, and therefore the impact, of the drop.

DUAL-DRIVE BELT SYSTEM

More often than not, two of a good thing is better than one. That is absolutely the case with Double L's dual-drive discharge. Two hydraulically-driven planetary drive systems power the conveyor belt in tandem to unload the truck in just a matter of minutes.

STAINLESS STEEL OPTION

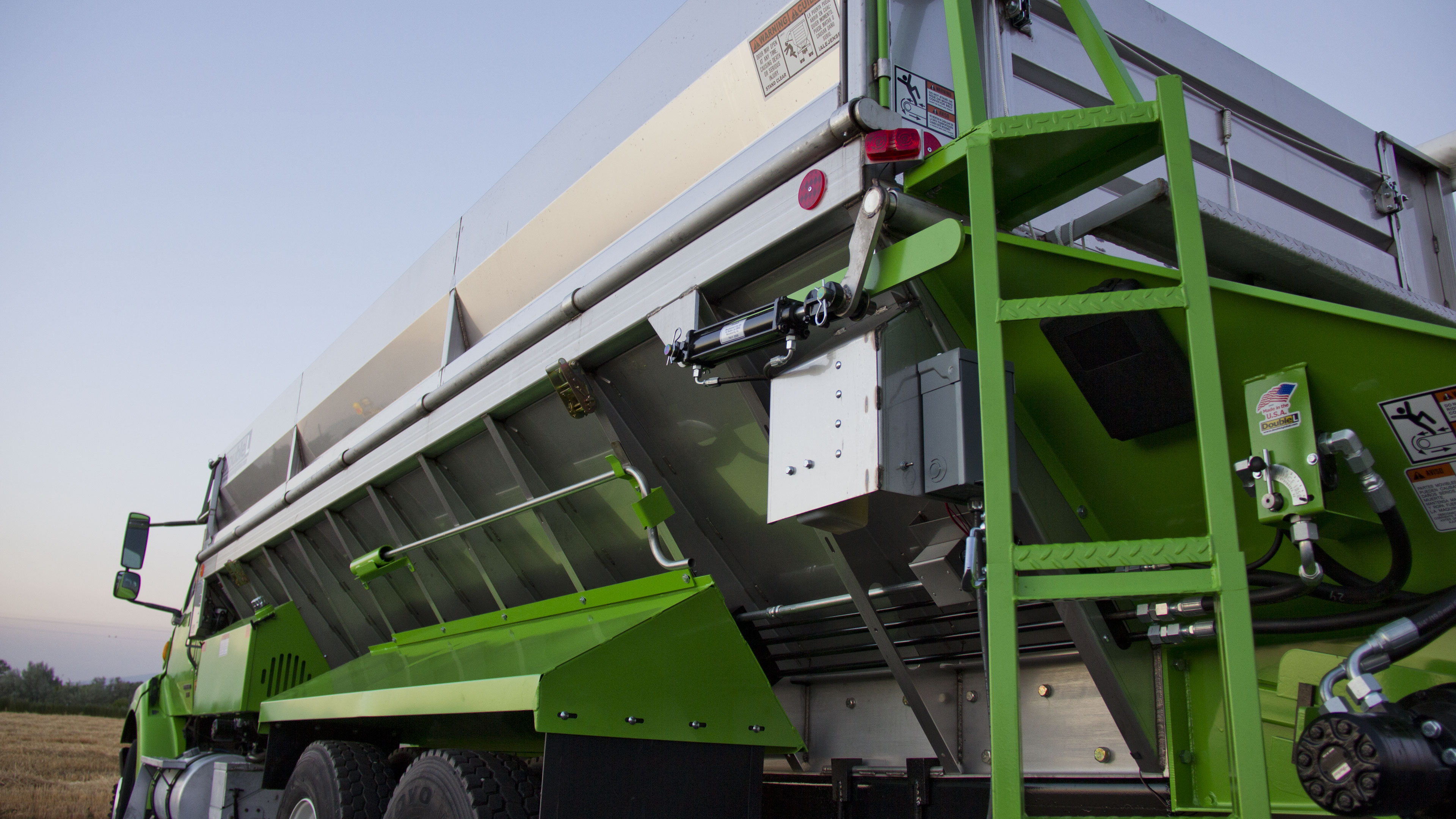

The Double L truck bed is already very versatile. Use it to haul grain, onions, potatoes, or beets. With the stainless steel option, hauling fertilizer is also an option.

2-YEAR LIMITED WARRANTY

Double L takes pride in the quality products that it manufactures. We stand behind our self-unloading truck beds with a 2-year limited warranty.

901 902 949 958
Height 7 ft. 1 in. (1.85 m) 7 ft. 1 in. (1.85 m) 7 ft. 1 in. (1.85 m) 7 ft. 1 in. (1.85 m)
Width 8 ft. 0 in. (2.44 m) 8 ft. 0 in. (2.44 m) 8 ft. 0 in. (2.44 m) 8 ft. 0 in. (2.44 m)
Weight (bed) 2.90 T (2.63 MT) 3.20 T (2.90 MT) 3.50 T (3.18 MT) 4.40 T (3.99 MT)
Bed Length 20 ft. 0 in. (6.10 m) 22 ft. 0 in. (6.71 m) 24 ft. 0 in. (7.32 m) 30 ft. 0 in. (9.14 m)
Total Length (including discharge) 23 ft. 0 in. (7.01 m) 23 ft. 0 in. (7.01 m) 23 ft. 0 in. (7.01 m) 23 ft. 0 in. (7.01 m)
Belt Width 29 in. 0 in. (73.66 cm) 29 in. 0 in. (73.66 cm) 29 in. 0 in. (73.66 cm) 29 in. 0 in. (73.66 cm)
Capacity 15.0 T (13.61 MT) 16.5 T (14.97 MT) 18.0 T (16.33 MT) 22.0 T (19.96 MT)
Horsepower 7.5 hp 7.5 hp 7.5 hp 7.5 hp
Dual-Drive Belt System Standard Standard Standard Optional
Triple-Drive Belt System Optional Optional Optional Standard
