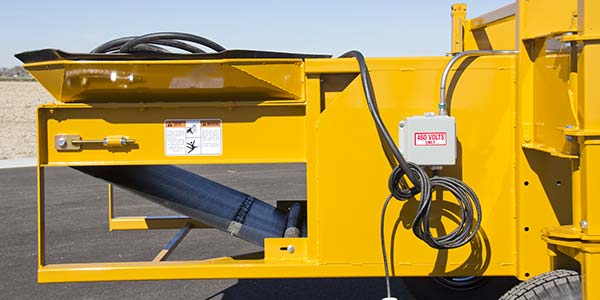

DOUBLE L TELESCOPING CONVEYOR

THE EXTENDABLE, CONTRACTIBLE CONVEYING OPTION

NO-DROP BELT DRIVE

Most conventional telescoping conveyors overlap two separate belt drive systems to extend or contract the conveyor. The Double L no-drop conveyors manage a self-contained belt drive system to smoothly convey product without risking damage.

TOOLLESS ATTACHMENT

Double L's toolless conveyor attachment system simplifies and speeds up the process of adding or removing a conveyor from your potato handling line.

TRAILER HITCH AND TOWING DOLLY

Until now, farmers have had to choose between having a longer conveyor or having a convenient way to transport it. Double L has designed a simple solution: a dolly to shorten the wheel base and a trailer hitch to couple the conveyor to a pickup truck. With these two options, farmers can pull our conveyors like a trailer at speeds up to 55 mph (88.51 kph).

CUSTOMIZABLE LENGTHS AND WIDTHS

No two farms are identical. Therefore, no two handling lines will be the same either. Double L's conveyors can be customized to accommodate the capacity and distance requirements of any farm.

CONVEYOR TRAILER

Tow your conveyor between storage sites with Double L Conveyor Trailer. Its onboard motor powers its hydraulic lifts anywhere you need it.

[ WATCH VIDEO ]

	920	936	1336	9152
Width	7 ft. 1 in. (2.16 m)	7 ft. 7 in. (2.31 m)	8 ft. 2 in. (2.49 m)	4 ft. 8 in. (1.42 m)
Length (extended)	60 ft. 4 in. (18.39 m)	60 ft. 4 in. (18.39 m)	87 ft. 2 in. (26.57 m)	60 ft. 4 in. (18.39 m)
Length (retracted)	35 ft. 4 in. (10.77 m)	35 ft. 4 in. (10.77 m)	52 ft. 1 in. (15.88 m)	35 ft. 4 in. (10.77 m)
Weight	2.00 T (1.81 MT)	2.50 T (2.27 MT)	5.00 T (4.54 MT)	3.06 T (2.77 MT)
Tires	6.70 x 15.0	6.70 x 15.0	7.5 x 16 10-ply	6.70 x 15.0
Belt Width	30 in. (76.20 cm)	36 in. (91.44 cm)	36 in. over 42 in. (91.44 cm over 106.68 cm)	36 in. over 42 in. (91.44 cm over 106.68 cm)
Discharge Height (min)	28 in. (71.12 cm)	28 in. (71.12 cm)	40 in. (101.60 cm)	30 in. (76.20 cm)
Discharge Height (max)	52 in. (132.08 cm)	52 in. (132.08 cm)	54 in. (137.16 cm)	44 in. (111.76 cm)
Capacity	225.00 T/hr (204.12 MT/hr)	250.00 T/hr (226.80 MT/hr)	225.00 T/hr (204.12 MT/hr)	250.00 T/hr (226.80 MT/hr)
Horsepower	5 hp	7.5 hp	2 x 5 hp	7.5 hp
Electrical Power	3 phase	3 phase	3 phase	3 phase
Power Wheels	Not Available	Not Available	Standard	Not Available
Power Steering	Not Available	Not Available	Standard	Not Available
V-Guide Belt Tracking	Optional	Optional	Not Available	Optional
No-Drop Belt Drive	Standard	Standard	Not Available	Not Available
Toolless Attachment	Standard	Standard	Optional	Standard
Tow Hitch	Optional	Optional	Standard	Optional
Towing Dolly	Not Available	Not Available	Optional	Not Available
